Paragon TnF-82 8-Sided Digital Kiln Outlet With Credit Card

THIS IS A DROP SHIPPED OR SPECIAL ORDER ITEM. PLEASE CONTACT OR LEAVE A NOTE IN THE COMMENTS BOX REQUESTING ESTIMATED WAIT TIME FOR SHIPPING

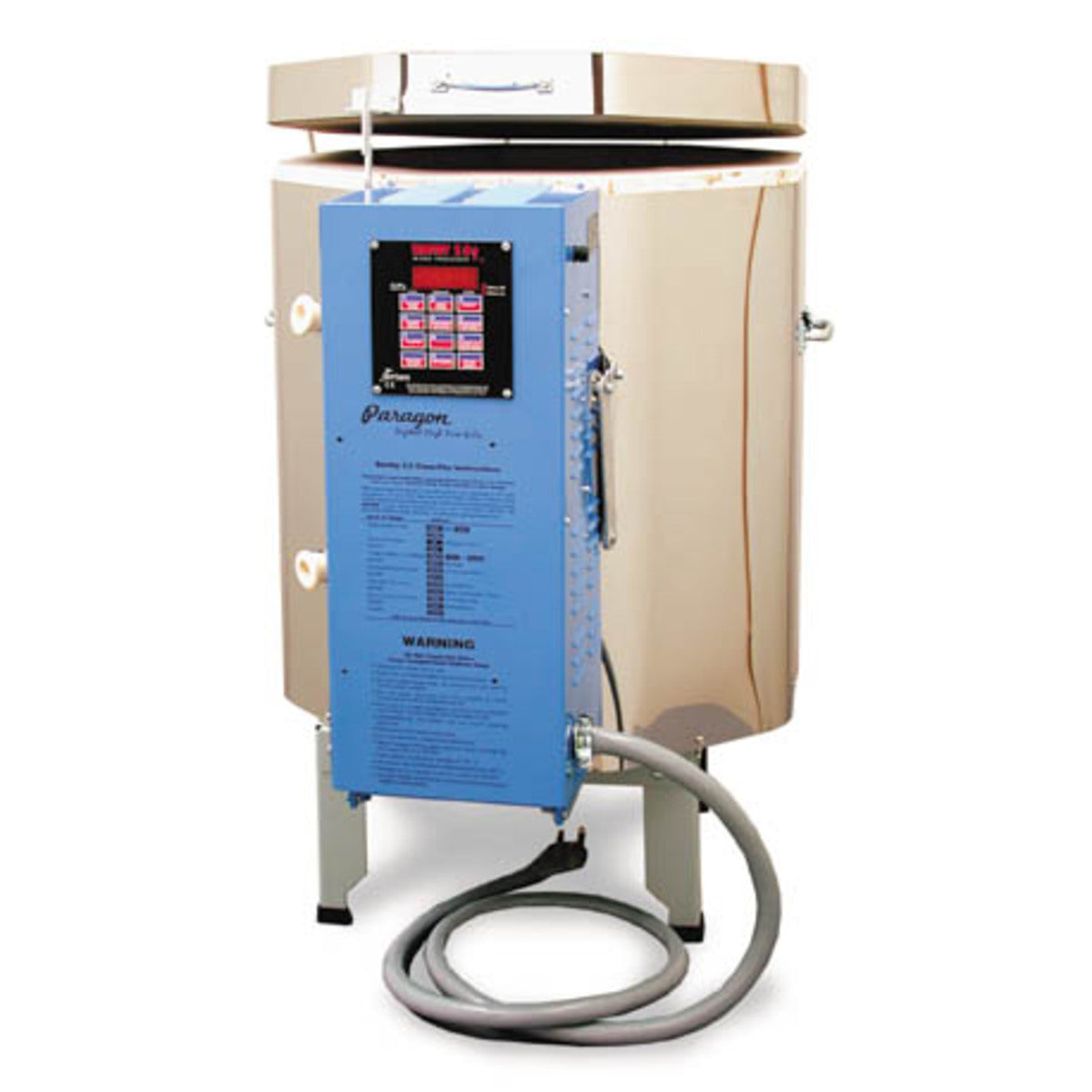

Paragon TnF-82

The digital automatic TnF-82 Paragon kiln is large enough for most ceramic projects. Figured at cost per cubic foot, it is among Paragon’s lowest priced hobby kilns. It uses the same circuit size as most studio kilns. Upgrade to a larger kiln later without having to install a new circuit.

This kiln now features the easy-access drop down switch box. Remove two screws, and the box, hinged at the bottom, opens forward for easy maintenance. The kiln features a top row of 2″ high blank wall bricks. Since the brick is without element grooves, it is less susceptible to damage during loading than a grooved brick.

The TnF-82 is made of 2-1/2″ thick firebrick in the lid, walls and bottom. It is designed for low-fire usage. For porcelain and stoneware, select a kiln made of 3″ firebrick.

Features of the TnF-82 Digital Automatic Kiln:

Sentry 12 Key Digital Controller, made by Orton Ceramic Foundation
Long-life electrical system with high temperature wire
Lock-in lid support with a positive catch
2 wide-view tapered peepholes
Ventilated, louvered switch box
2 hand lifts
Heavy duty kiln stand with mar-proof plastic feet
Full-formed, galvanized steel base covers the entire brick bottom
Fall-away two stage Prop-R-Vent for venting the ware
Coated lid, peepholes and rim of firebricks for extended firebrick life
Operating instructions on switch box
Heavy gauge stainless steel case
Full firing capacity: fire ware directly on the brick bottom
Reversible brick bottom
Dropped, recessed brick grooves help prevent element bulging; eliminate the need for element pins; make changing the element easier and faster than some competing models that require element pins.
SPECIFICATIONS:
Max. Temperature
2300F
1259C

Amps
30

Phase
1

Watts
7200

Nema
6-50P

Breaker Size
50

Circuit
6

Control Type
Sentry Digital 12-key Ceramics

Voltage
240

Hertz
60

Sides
8

Chamber Volume
3.30 CU.FT.
93.45 Liters

Chamber Diameter
17.50″
44.45 CM

Chamber Depth
22.25″
56.52 CM

Outer Size
25.50W x 28.30D x 37.00H Inches
64.77W x 71.88D x 93.98H CM

Ship Size
36.00W x 37.50D x 35.00H Inches
91.44W x 95.25D x 88.90H CM

Ship Weight
213.00 Lbs.
96.62 Kg.
