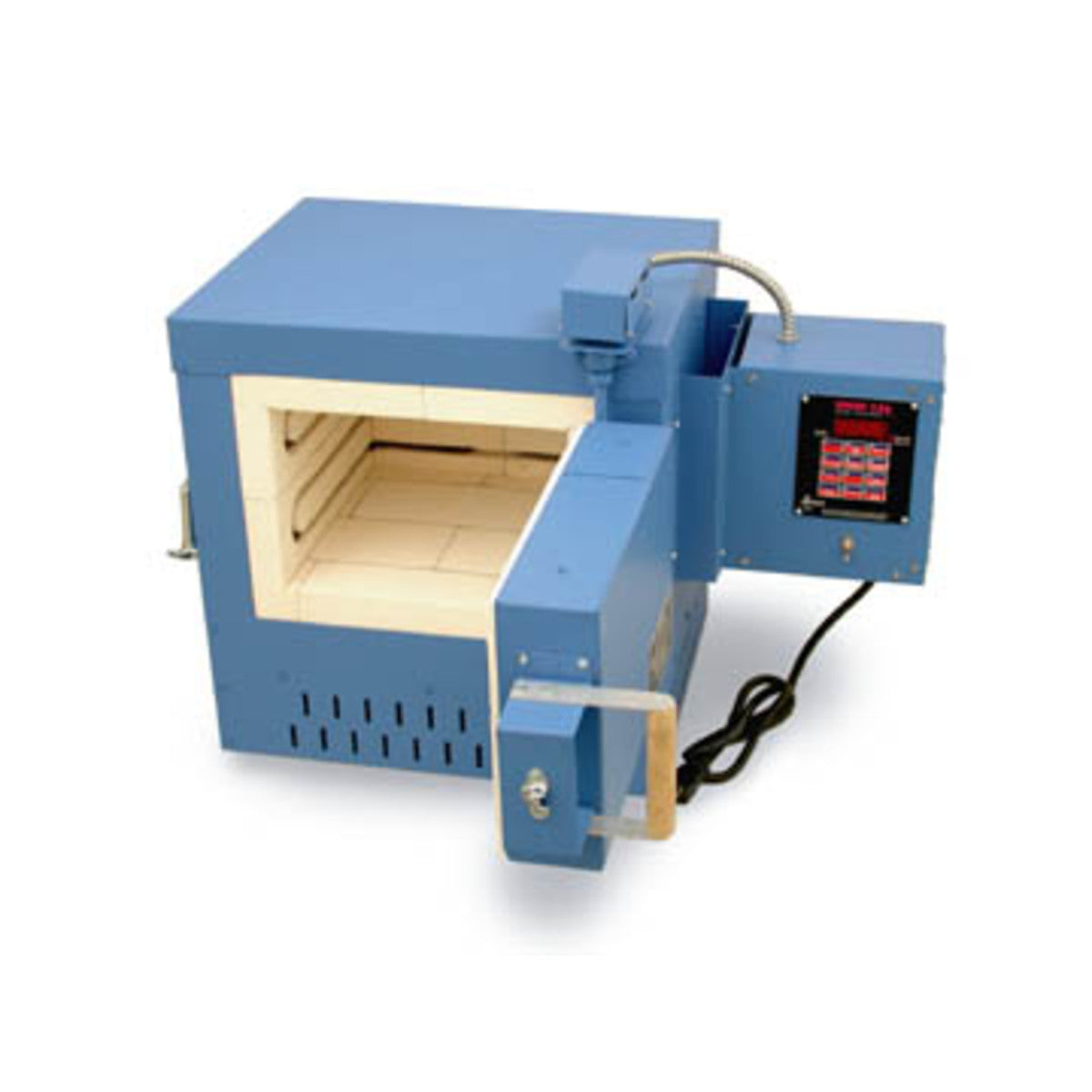

The door swings open with one-handed operation. A counter-weight handle holds the door securely closed. The door has a vent hole, so you can see inside the furnace during firing. A built-in stand lifts the firing chamber safely off your worktable, so no extra stand is needed. The door is mounted with a heavy-duty hinge for smooth opening. A micro-switch shuts off the power to the elements when the door is opened. A heat shield, mounted between the switch box and furnace, helps keep the switch box components cool even during extended operation. SPECIFICATIONS Max. Temperature
2350F
1287C

Amps
17

Phase
1

Watts
3600

Nema
6-20P

Breaker Size
20

Circuit Wire Size
12 gauge

UL
N

CE
N

Control Type
Sentry Digital 12-key Non-Ceramic

Voltage
208

Hertz
60

Sides
4

Chamber Volume
0.80 CU.FT.
22.65 litres

Chamber Width
13.00
331 mm

Chamber Depth
13.00
331 mm

Chamber Height
8.50
216 mm

Outer Size
34.00W x 25.00D x 23.00H Inches
864W x 635D x 585H mm

Ship Size
38.00W x 29.00D x 27.00H Inches
966W x 737D x 686H mm

Ship Weight
160.00 Lbs.
72.58 Kg.
