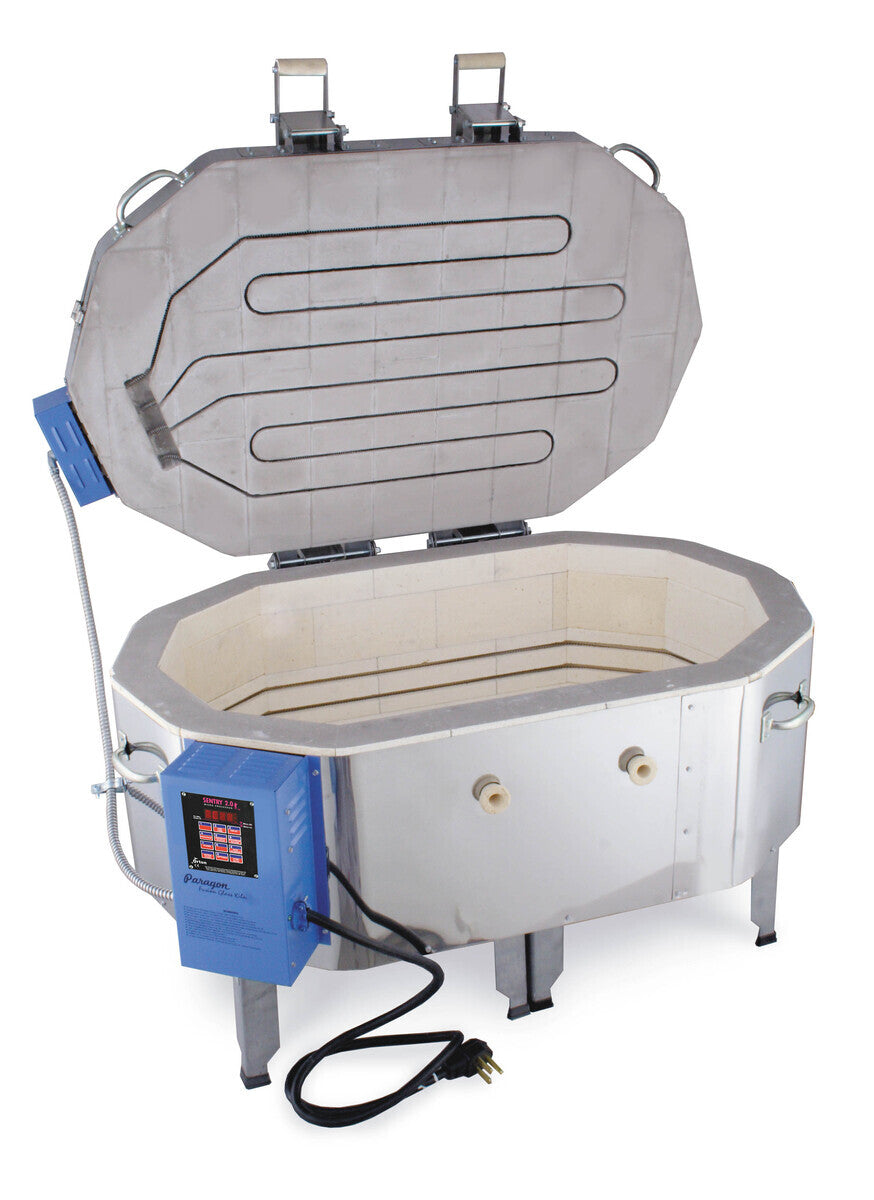

Paragon Ovation-10 Glass Fusing Kiln
The glistening Ovation-10 will inspire you to make glass. It is rugged, reliable, and designed to last. Enjoy fusing, slumping, pate de verre, and painting in this large production kiln.
If you have been firing a smaller kiln, you will be amazed at the space inside the Ovation-10. Fire several large projects such as bowls or platters in one load.
Dual spring-assisted lid supports transfer the weight of the lid to a massive hinge assembly on the back of the kiln. This reduces the stress on the kiln wall to give your kiln the long life that Paragon kilns are famous for.
The Ovation-10 lid elements use an element groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The sidewall element coils are protected in dropped, recessed grooves.
You will be amazed at the convenience of digital firing. The reliable solid-state Sentry controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.
The controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.
Do you ever wonder how much electricity your kiln uses? The digital controller can figure this for you with the press of a button. Find out how little a kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.
The Furniture Kit
furniture kit comes with necessary shelves and posts for your kilnOvation 10. When estimating the price of the kiln, include the cost of furniture.
Furniture Kit for Ovation 10
2 “D” Shelves (21” x 17 1/2” x 5/8” thick)
12 – 1‚Äù wide Square Posts, 1/2‚Äù tall –
1 lb. Bag Kiln Wash
The Ovation-10 interior is 41” wide, 11 1/4” high, and 22.5” deep and includes a heating element in the sidewalls. Enjoy enhanced heat control with fusing, slumping, and embossing. The Fusion-10 fires on 240 volts.
Maximum temperature: 1700¬?F
3”-thick firebricks in the walls, top and floor for solid construction and slow natural cooling
Heating elements in top mounted in pinless grooves
Heating elements in the lower sidewalls
_” heavy duty sheathed Type-K thermocouple
Lock-in lid support
Full-formed galvanized steel base for extra strength
Louvered switch box, heavy duty wiring
Two front tapered peepholes with plugs for a wide view
Max Temperature:
1700F (926C)
Amps:
30
Phase:
1
Watts:
7200
Nema details:
6-30R
2” dia.
Breaker Size:
40
Circuit Copper Wire Size:
10 gauge
TUV Tested to CSA and UL Standard 499:
Yes
CE:
No
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
Control Type:
Sentry Digital 12-Key Non-Ceramic
Voltage:
240
Hertz:
60
Kiln Type:
Top Loading Square
Sides: 4
Inner Dimensions
Chamber Volume:
5.7 Cubic Ft. (161.41 Litres)
Chamber Length:
41.00” (1041mm)
Chamber Width:
22.50” (572mm)
Chamber Depth:
11.50” (292mm)
Outer Dimension
Outer Size:
57.00”W x 39.00”D x 38.05”H
Ship Weight:
452.00 Lbs
If you would like this model with a viewing window you can check out item ovationkilnw.
