Paragon F500 Digital Kiln Outlet Exclusive

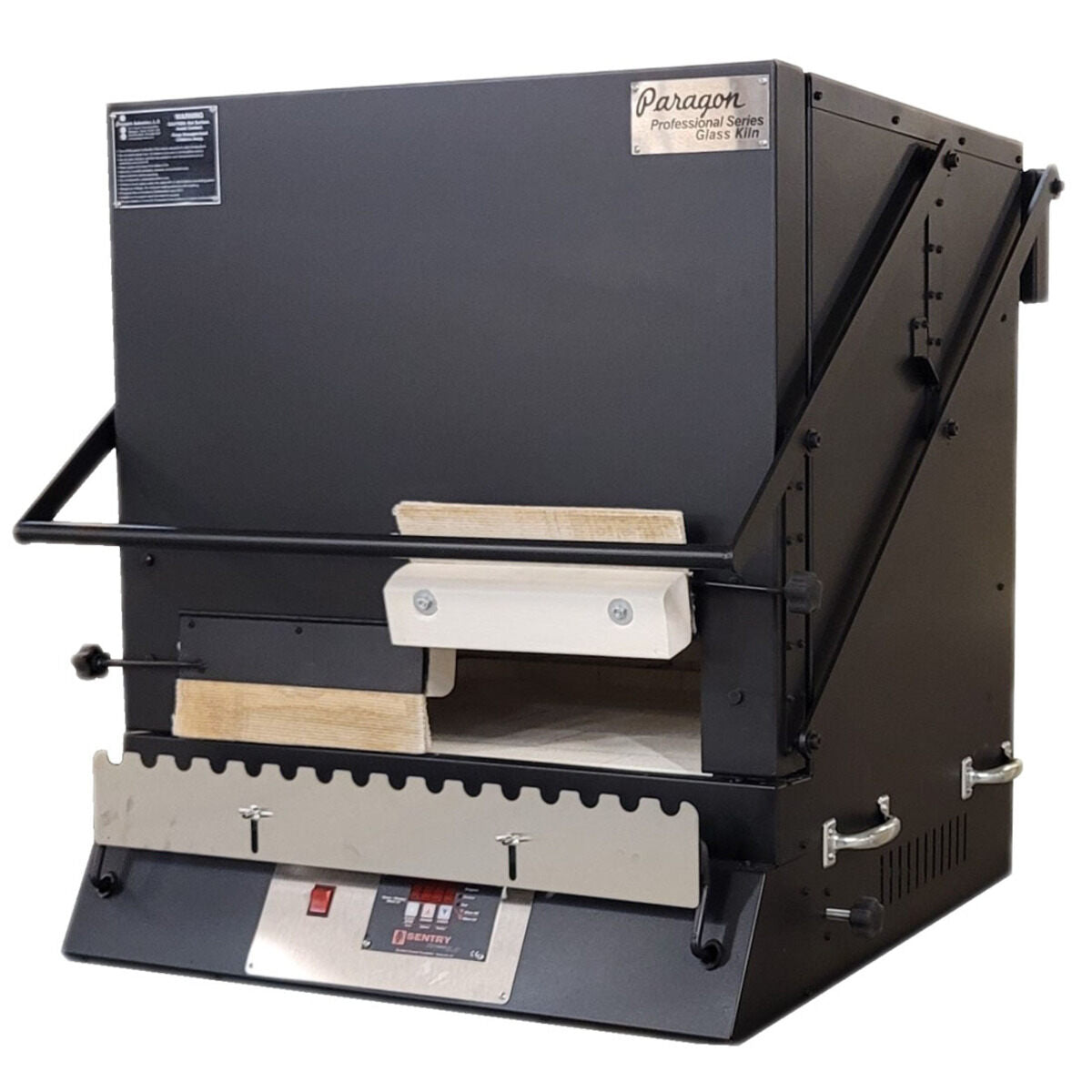

The kiln is designed for annealing large glass figurines, beads, and marbles and is made at the Paragon factory in Mesquite, Texas USA. The interior is 24″ wide, 22 1/4″ high, and 18″ deep. Imagine the huge glass pieces you could make with a kiln this large. The massive F-500, with its towering door counter-weight and handsome black finish, is a true workhorse kiln that will raise your production. The F-500 simplifies annealing so you can immerse yourself in creating breathtaking ware. Raise the counter-weight vertical-drop door to insert glass on a punty rod. Lower the door. The punty rod extends outside the firing chamber through a smaller punty rod door. The door is balanced so it stays open where you stop it. Maintain the annealing temperature indefinitely with the Sentry Xpress 3-key controller. The punty rod doors retain the heat The main door includes two 4″ x 10 1/2″ punty rod door openings. Two flexible gaskets under each door help to retain the heat. The rods can extend outside the kiln through the gap under the doors. This allows the doors to remain fully closed. The ceramic fiber punty rod doors are a full two inches thick to help retain heat. Rare-earth magnets hold the doors in the open and closed positions. Specifications: Max. Temperature: 1200F, 648C Amps: 29 Phase: 1 Watts: 6850 Nema: 6-30R Breaker Size: 40 Circuit Wire Size: 8 gauge Certified to CSA & UL Std 499 Control Type: Sentry Digital 3-key Glass Control Voltage: 240 Hertz: 60 Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations. The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations. Sides Chamber Volume 5.50 CU.FT. 155.74 litres Chamber Width 24.00 IN, 610 mm Chamber Depth 18.00 IN, 457 mm Chamber Height 22.25 IN, 565 mm Outer Size 35.00W x 29.00D x 38.00H Inches Ship Size 42W x 47D x 44H Inches Ship Weight 550.00 Lbs. Doorway Clearance Needed 29.00 Inches Ship Method This Kiln Ships Via Truck Just click on this link for more details.Click Here For A Product Video ABR Part #ABR9P612J3EGP
