paf10-1 Glass Annealing 1000F Kiln Cheap Pictures

THIS IS A DROP SHIPPED OR SPECIAL ORDER ITEM. PLEASE CONTACT OR LEAVE A NOTE IN THE COMMENTS BOX REQUESTING ESTIMATED WAIT TIME FOR SHIPPING

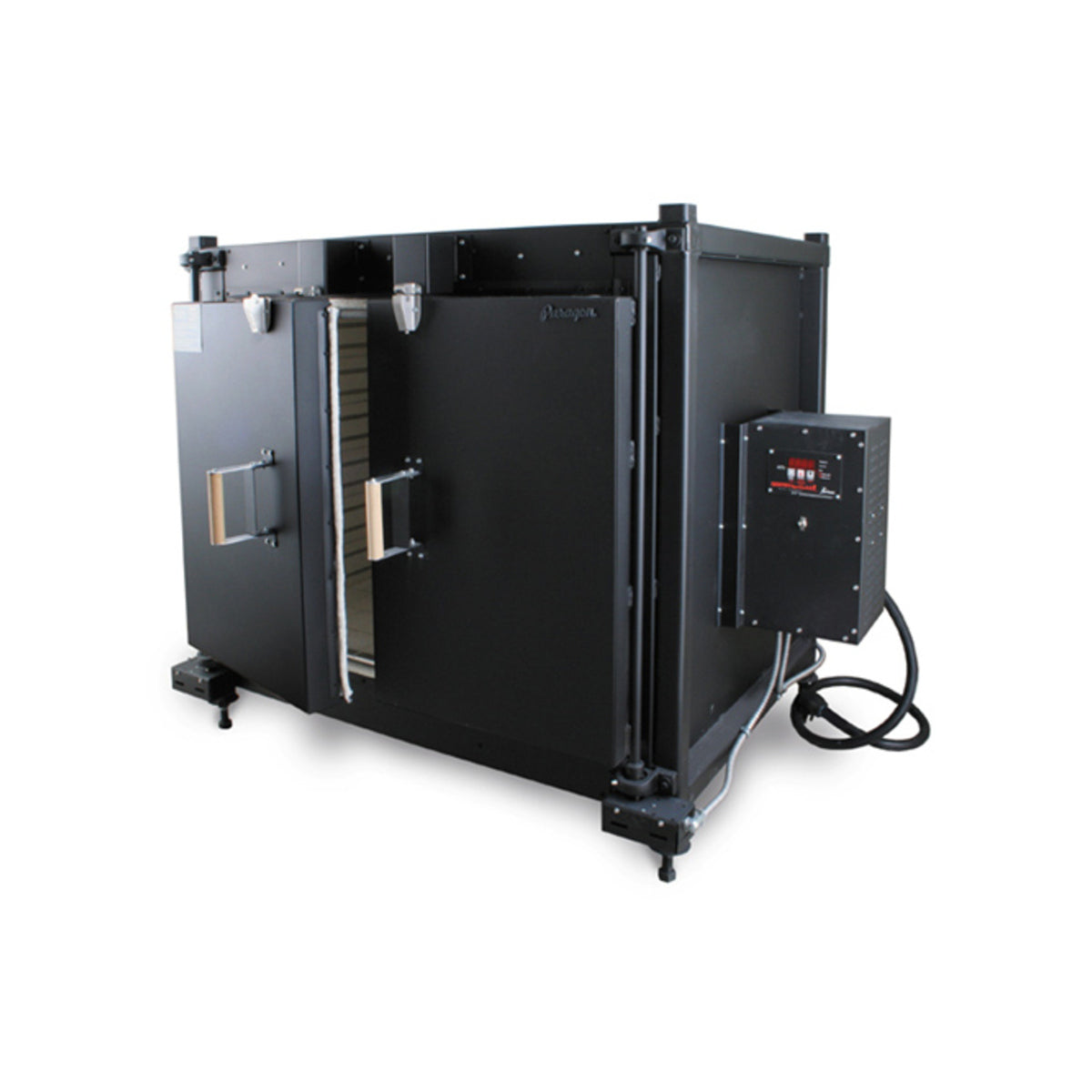

Expand the production capacity of your glass studio with the massive 16-cubic-foot PAF10-1 glass annealing kilning about having enough annealing capacity.

The PAF10-1 is designed for annealing, so the maximum temperature is 1000¬?F (538¬?C). With this kiln, you are buying only the heating capacity that you need for annealing.

The PAF10-1 is stackable. As your business grows, add another PAF10-1 without using more floor space. The feet of the top kiln fit into the four stacking points of the bottom kiln. Level the kiln in minutes with levelers that are built into the feet.

Spring-loaded quick-release door latches allow one-handed loading into the hot kiln. The doors open smoothly on heavy-duty 3/4” hinge shafts. The firing chamber opening is lined on all four sides with a fiber rope door seal. The doors also each have a seal where the doors meet in the center. Each door has a safety switch that turns off the elements when the door is opened. The controller remains powered and automatically resumes firing when you close the doors.

You will enjoy the convenience of digital firing. The solid state Sentry Xpress controller continually monitors the firing so you can spend your time productively without closely watching the kiln. The sealed touch pad keeps out dust and is easy to wipe clean.

The kiln heats from the sides and back. Dropped, recessed brick grooves protect the elements for long life. The kiln is heavily insulated for economical operation. The insulating firebricks and fiberboard, wrapped in heavy-gauge steel, soak up heat for slow, efficient cooling:

4” thick top: 3” firebrick and 1” ceramic fiberboard
3” thick doors: 3” ceramic fiberboard
4” thick walls: 1” ceramic fiberboard and
A mercury relay is standard on this kiln. The relay sends power to the elements on command from the digital controller. The life of the quiet, reliable mercury relay has been measured in millions of on/off cycles.

Paragon’s PAF10-1 is made for years of rigorous firing with a heavy 2” tubular steel frame. A heat shield and 1 3/4” air gap between the kiln and ventilated switch box help keep electrical components cool for long, trouble-free service. Costly heavy-gauge nickel-plated copper wiring is covered with high temperature glass-braided insulation. The thermocouple, which senses temperature inside the kiln, is protected with a high-nickel stainless steel sheath for long life. Turn off power to the controller when the kiln is not in use using an on/off switch on the control panel.

The PAF10-1 has a durable high temperature, water-base finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.

There is no extra charge for crating. Inquire about the crating cost of a competitive kiln when figuring prices. Most Paragon round and square kilns are packed in wooden crates at no extra charge.

The PAT30-1 is proudly made in America by skilled craftsmen.

Specifications
Max. Temperature
1100F
593C

Amps
48

Phase
1

Watts
11500

Nema
6-50R

Breaker Size
6

Circuit Wire Size
50 gauge

Certified to CSA & UL Std 499
N

CE
N

Control Type
Sentry Digital 3-key Glass Control

Voltage
240

Hertz
60

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Sides
4

Chamber Volume
16.00 CU.FT.
453.07 litres

Chamber Width
35.50
902 mm

Chamber Depth
29.00
737 mm

Chamber Height
27.00
686 mm

Outer Size
56.00W x 46.00D x 45.00H Inches
1422W x 1168D x 1143H mm

Ship Size
58.00W x 50.00D x 51.00H Inches
1473W x 1270D x 1295H mm

Ship Weight
757.00 Lbs.
343.38 Kg.

Doorway Clearance Needed
46.00 Inches
1168.40 mm

Ship Method
This Kiln Ships Via Truck

Part Number
S1033 * Base Model

Price
$9,800.00

Quantity
