Fusion-7 Digital Glass Fusing Kiln Clearance Tumblr

THIS IS A DROP SHIPPED OR SPECIAL ORDER ITEM. PLEASE CONTACT OR LEAVE A NOTE IN THE COMMENTS BOX REQUESTING ESTIMATED WAIT TIME FOR SHIPPING

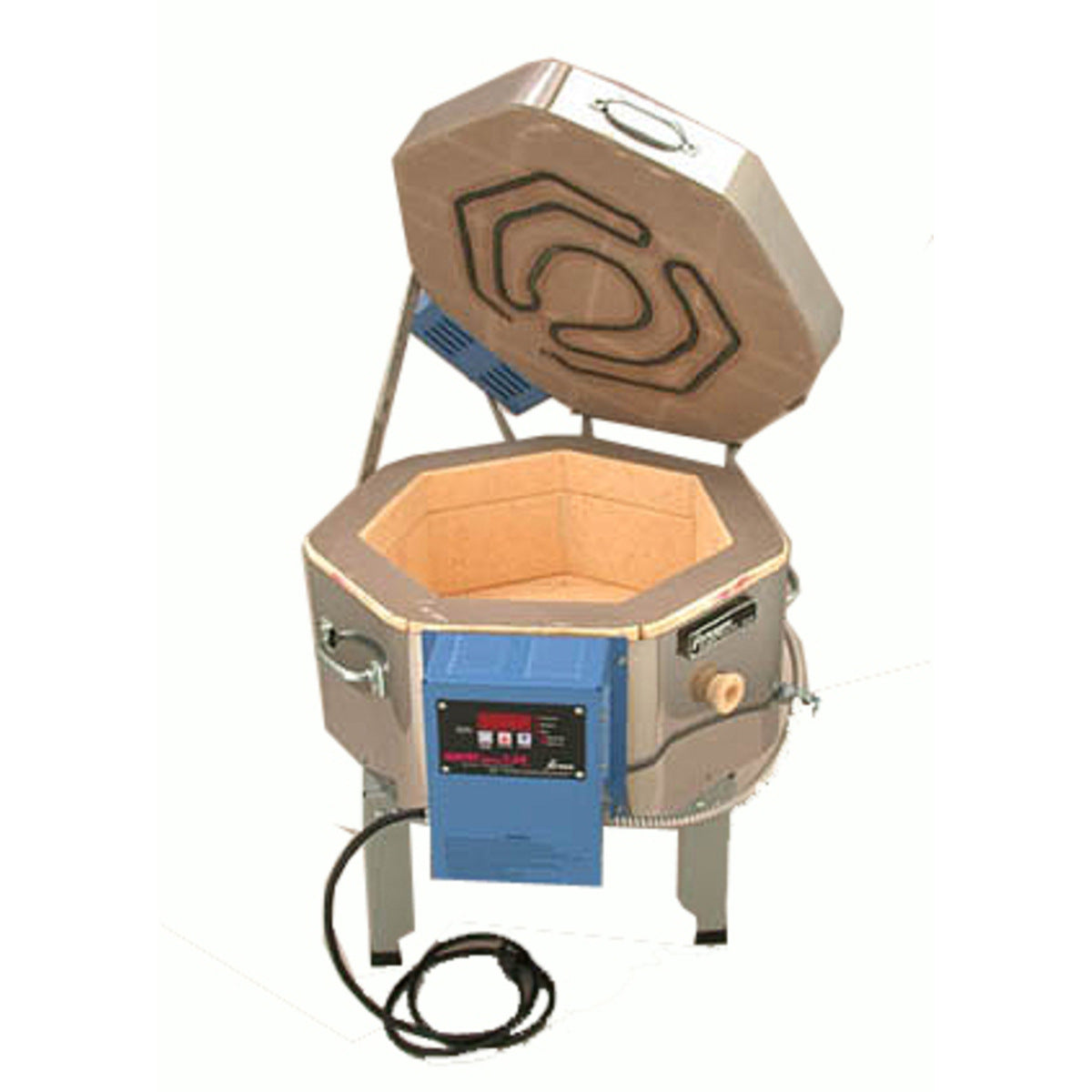

Fusion 7 Digital Glass Fusing Kiln reaches a max temperature of 1700F degrees with Top heating elements. The Digital 3 key controller comes standard on all Fusion-series kilns. Control both heating and cooling with simple 3-key operation.
Features:
Digital Sentry Xpress with 8 Segment Ramp-Hold, Skip Segment & Program Review
Heating elements in top of all models
1/4″ heavy duty sheathed Type-K thermocouple
2 -1/2″ insulating refractory firebrick in walls and bottom; 3″ firebrick lid
Lock-in lid support
Full-formed galvanized steel base
Louvered switch box, heavy duty wiring
Tapered peephole with plug for a wide view.
Specifications: Max. Temperature -1700F
Amps – 15
Phase – 1
Watts – 1800
Nema – 5-15P
Breaker Size – 20
Circuit – 12
UL – Y
CE – N
Control Type – Sentry Digital 3-key Glass Control
Voltage – 120
Hertz – 60
Sides – 7
Chamber Volume – 0.69 CU.FT.
19.54 Liters
Chamber Diameter – 14.50″
36.83 CM
Chamber Depth – 6.50″
16.51 CM
Outer Size – 22.00W x 24.50D x21.00H Inches/55.88W x 62.23D x 53.34H CM
Ship Size – 30.00W x 30.00D x 19.00H Inches/76.20W x 76.20D x 48.26H CM
Ship Weight – 103.00 Lbs.
42.64 Kg.
