2016 TCS Train Control Systems / K0D8-G Kato Decoder N Scale

Interface Type – Drop-In

Dimensions (L x W x H): 2.139″ x 0.538″ x 0.068″ or 54.32mm x 13.67mm x 1.73mm

Scale: N Scale

Continuous/Peak: 1.0/2.0 Amp

Total Functions: 8

Function Rating: 80 mA

12V Outputs – 6

LED Outputs – 7

Onboard LEDs – 1

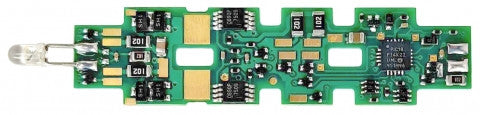

The K0D8 is a N-scale drop-in decoder for Kato locomotives. Examples include the following:

Kato:

E7A

Note: The K0D8 line of decoders are available with different lighting configurations. Pay special attention to the compatibility. The K0D8-G features 1 onboard super-bright, “Sunny White” LED with custom-length leads in the forward direction only.

Back EMF Load Compensation:

Provides superior slow speed control and high performance under load.

Quiet Drive:

Super-quiet motor control for “buzz” free motor performance.

DC Mode:

Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

RailCom®:

This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.

Variable Momentum:

Allows you to make custom acceleration and deceleration curves.

LED Support:

This product does not require external resistors when connecting LED’s.

Incandescent Bulb Support:

This decoder can be used with 12 Volt bulbs.

Function Remapping:

Buttons 0 through 12 may be used to control the lighting functions of this decoder.

Programmable Lighting Effects:

Choose from 20 separate user-programmable lighting effects!

Dimmable Brightness:

Configure multiple different brightness levels for your LED’s or incandescent bulbs.

Decoder Lock:

Feature which prevents accidental/unwanted programming while activated.

Airwire™ Compatible:

Fully compatible with Airwire™ operation.

User-Loadable Speed Tables:

Configure custom speed curves and set speed limits.
